Four services, taken separately or combined into a standing weekly commitment. We work in your software, your templates and your systems.
01
Best over the long term
As many hours a week as you need, inside your processes and systems, so your own engineers can start on the next project.
Standing weekly capacity
02
DWG · DXF · STEP · PDF
2D into 3D or the other way round, plus the files and overviews your shop floor needs to get started.
Production-ready file set
03

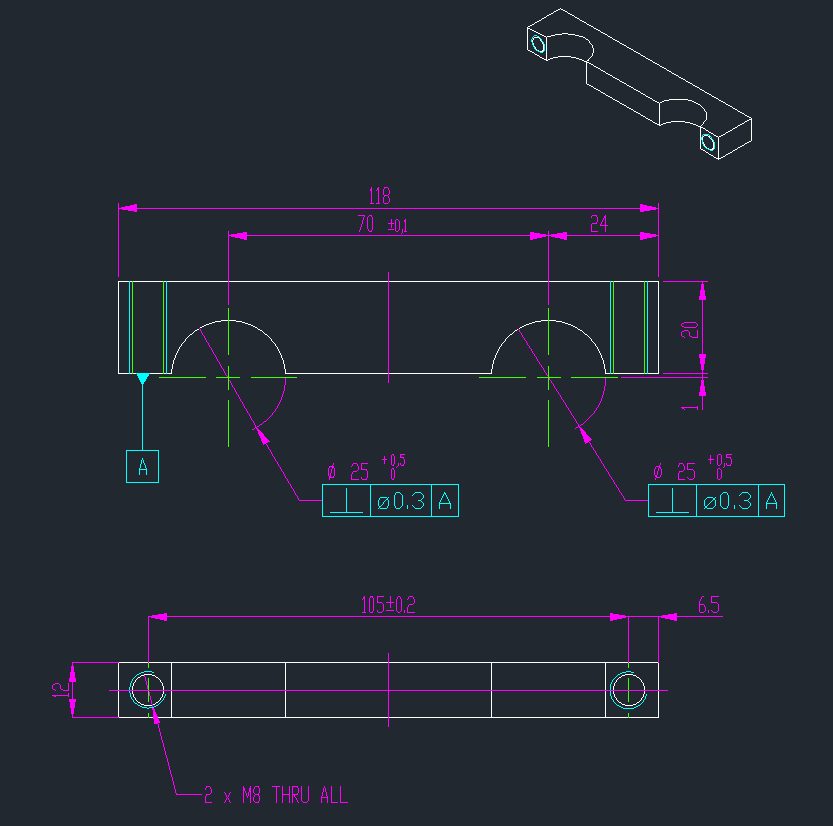

ASME Y14.41 · ISO 16792
Every dimension, tolerance and GD&T/PMI callout inside the 3D model. One source of truth for CNC and CMM, with no room for interpretation.
Annotated 3D model
04
Codes & standards
One detail change touches ten documents. We push the change through and keep the whole set consistent.
Updated, consistent drawing set
Where we work
The industries we know, what we are strongest at, and the work we actually do day to day.
Core competency
Most drawing offices grow their own conventions one project at a time: three ways to name a part, four title block variants, tolerances that mean different things on different sheets. We bring that back to one set of rules and apply it across the whole file set, so a drawing reads the same whoever picks it up.
Core competency
Files are only worth what you can find again. We file everything back into your own PLM or DMS with the right revision, status and metadata, so the shop floor never works from a superseded drawing.
Toolset
We work in the package you already use and deliver to the standard your client asks for.

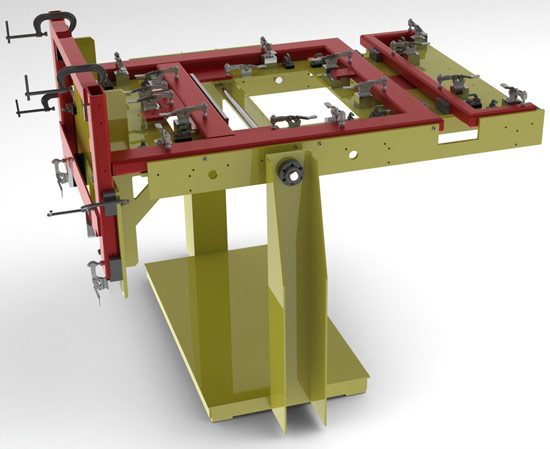

All alloy and non-alloy steels and most plastics, across welded frames, machined parts and sheet metal.
Call, email or send a message. We will look at where we can step in, no obligation.
